Home >> Rudder/Trim Tab Anodes >> Magnesium >> Specifications

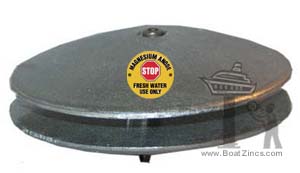

Rudder / Trim Tab Magnesium Anode
Specifications

Two-piece pancake magnesium anode for rudders and trim tabs.  A stainless steel nut is pressed into one half, and a stainless steel socket cap screw connects the two halves together.

Rudder / Trim Tab Magnesium Anodes

Mil-Spec A-21412 (SH) Magnesium Alloy

Corrosion of dinghy lift from using zinc anodes in freshwater

Corrosion of dinghy lift from using zinc anodes in freshwater.

Click to enlarge



MODEL

DIAMETER

THICKNESS OF
ONE-HALF

WEIGHT

BOLT SIZE

HEX
WRENCH

OUR
PRICE

ADD TO
CART

R-1M
1-7/8"
1/4"
0.10 lbs
#10 x 1"
5/32"
 $5.35 R-1M Rudder Magnesium Anode - 1-7/8" Dia. (R1M)
R-2M
2-13/16"
1/2"
0.28 lbs
1/4" x 1-1/4"
3/16"
 $14.19 R-2M Rudder Magnesium Anode - 2-13/16" Dia. (R2M)
R-3M
3-3/4"
1/2"
0.45 lbs
5/16" x 1-1/2"
1/4"
 $17.43 R-3M Rudder Magnesium Anode - 3-3/4" Dia. (R3M)
R-4M
5"
5/8"
0.90 lbs
5/16" x 1-3/4"
1/4"
 $32.48 R-4M Rudder Magnesium Anode - 5" Dia. (R4M)
R-5M
5"
7/8"
1.25 lbs
5/16" x 2-1/4"
1/4"
 $42.50 R-5M Rudder Magnesium Anode - 5" Dia. Heavy (R5M)
Part Number Variations: R-1M, R-2M, R-3M, R-4M, R-5M, R1M, R2M, R3M, R4M, R5M, R-1MG, R-2MG, R-3MG, R-4MG, R-5MG, R1MG, R2MG, R3MG, R4MG, R5MG, R-1MG, R-2MG, R-3MG, R-4MG, R-5MG, R1MG, R2MG, R3MG, R4MG, R5MG, R1M, R2M, R3M, R4M, R5M, CMR01M, CMR02M, CMR03M, CMR04M, CMR05M, TEC-R1MG, TEC-R2MG, TEC-R3MG, TEC-R4MG, TEC-R5MG
